Niutian Unit G11/C3/C4-01 Plot Park and Cultural Sports Center Project

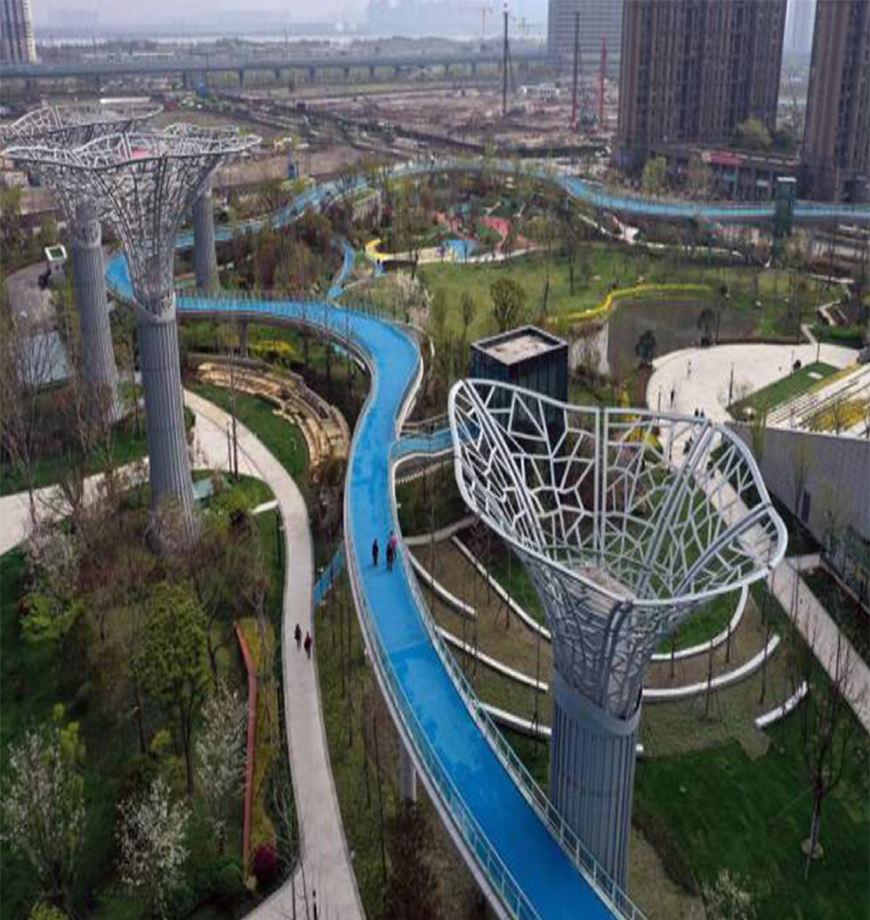

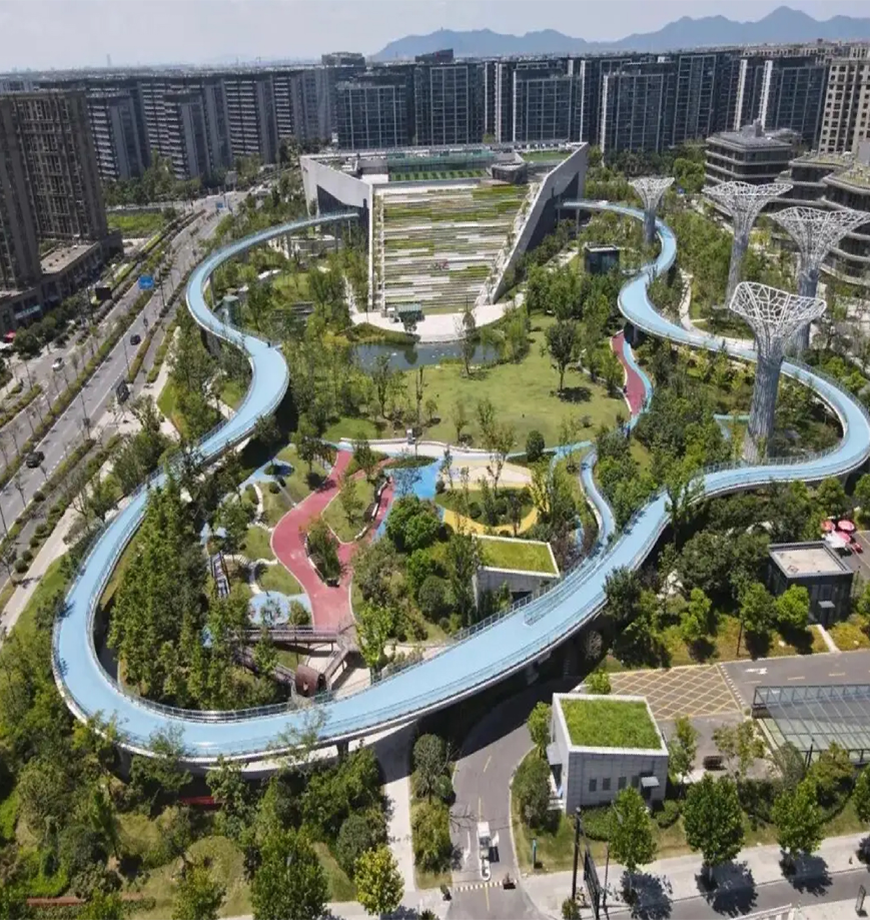

Niutian Unit G11/C3/C4-01 Plot Park and Cultural Sports Center Project. This design includes a scenic pedestrian bridge within the park, consisting of a main bridge and a ramp bridge. The main bridge has a total length of 600.524 meters and a width of 4.1 meters. The ramp bridge is 40 meters long and 2.3 meters wide. The upper structure of the bridge uses steel box girders with a height of 1.2 meters and an outer decorative panel. The lower structure uses steel structure pile column piers with a column diameter of 0.8 meters. The top of the column has a 2.85-meter transition section expanding to 1.9 meters.
